A rounded exhaust bolt can turn a routine repair into a frustrating battle, especially when years of heat cycles, corrosion, and road grime have bonded the fastener to the engine or exhaust flange. The key is not brute force—it is controlling heat, penetration, tool engagement, and removal force in the right sequence.

Why Exhaust Bolts Round Off So Easily

Exhaust fasteners live in one of the harshest areas of a vehicle. Repeated heating and cooling can cause corrosion to build between the bolt threads and surrounding metal, while previous repairs may have already weakened the bolt head.

Common causes include:

• Rust and oxidation around the threads

• Excessive torque during previous installation

• Using the wrong-size socket

• Cheap or worn hand tools

• Working on a hot engine

• Applying force at an angle

• Using an impact tool before properly seating the socket

Once the corners of the bolt head begin to deform, continuing with a standard six-point socket can make the problem significantly worse.

Step 1: Let the Exhaust System Cool Completely

Never begin aggressive fastener removal on a hot exhaust system.

Allow the engine and exhaust components to cool completely before working around the fastener. Besides reducing burn risk, a cool assembly gives you better control when applying penetrating oil and positioning extraction tools.

If the vehicle has recently been driven, give the exhaust enough time to reach a safe working temperature.

Step 2: Clean the Fastener Before Applying Force

Remove loose rust, dirt, and scale around the bolt head and exposed threads.

A stiff wire brush can help clean the area. If the bolt is heavily corroded, use a small pick or suitable cleaning tool to remove debris from the edges of the bolt head.

The goal is simple: maximize contact between the tool and whatever remains of the fastener.

Step 3: Apply Penetrating Oil

Apply a quality penetrating lubricant around the exposed threads and the joint where the bolt enters the flange or mounting point.

Give it time to work rather than immediately reaching for a wrench. For heavily corroded hardware, repeated applications can be more useful than one large application.

Avoid flooding nearby components unnecessarily, particularly if you will later use controlled heat.

Step 4: Try a Six-Point Socket First

If the bolt head still has usable flats, use a high-quality six-point socket that fits tightly.

A six-point socket generally provides better engagement than a twelve-point socket because it contacts the flats of the fastener more directly.

Push the socket firmly onto the bolt before applying torque.

Instead of immediately using maximum force, try controlled movement. A short breaker bar can provide better feedback than an impact gun during the first attempt.

Stop If the Head Starts Slipping

This is one of the most important moments in the repair.

If the socket begins climbing over the bolt head, stop.

More force will not restore the damaged corners. It will usually make the extraction problem harder.

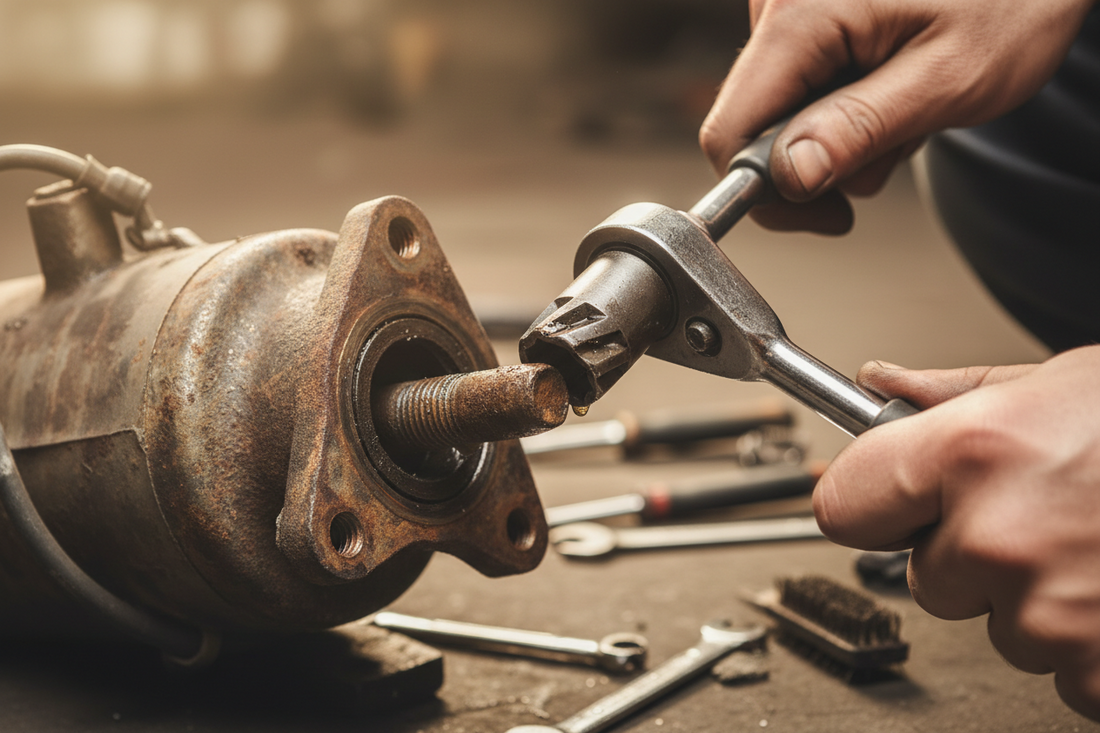

Step 5: Use a Bolt-Extraction Socket

When the bolt head is already rounded, a dedicated extraction socket is often the next logical step.

Extraction sockets are designed to bite into damaged fasteners rather than relying on perfect factory-shaped corners.

Select the smallest appropriate extractor that can be firmly driven onto the damaged head.

Tap the extractor into position with a hammer if the tool design allows it. Make sure it is seated deeply and squarely before applying torque.

Then use steady, controlled force.

Step 6: Introduce Controlled Heat When Appropriate

If corrosion has locked the threads inside a metal flange, controlled heat can help break the bond.

The objective is to heat the surrounding metal in a controlled manner rather than simply overheating the bolt.

Before using heat:

• Remove combustible materials from the work area.

• Check for fuel, oil, wiring, plastic, and rubber components nearby.

• Keep a suitable fire extinguisher accessible.

• Follow the requirements for your specific vehicle and tools.

• Never use an open flame where it could ignite vapors or materials.

For particularly stubborn exhaust hardware, professional-grade induction heating equipment can offer more controlled localized heating than an open flame.

After heating and allowing the assembly to respond appropriately, reassess the fastener rather than immediately applying maximum torque.

Step 7: Escalate to Mechanical Extraction

If the extractor cannot remove the bolt, continuing to hammer or twist harder can damage the surrounding component.

At this stage, possible escalation methods include:

Welding a Nut to the Bolt

If enough of the damaged bolt is accessible, welding a new nut onto it can provide a fresh gripping surface.

The welding heat may also help disturb corrosion around the threads.

This method requires appropriate welding equipment and careful protection of nearby components and electronics.

Cutting a Relief Groove

For certain accessible fasteners, a controlled cut can create a slot for a suitable removal tool.

This approach requires enough clearance and precision to avoid damaging the surrounding flange or mounting surface.

Drilling the Fastener

Drilling should generally be considered a later-stage extraction method, not the first response.

Start with careful center alignment. A damaged or off-center hole can turn a removable bolt into a damaged threaded hole.

If necessary, progressively increase drill size until the fastener can be removed or the remaining material can be extracted.

What Not to Do

Several common approaches create more problems than they solve.

Don't Keep Using a Slipping Socket

Every failed attempt can remove more material from the bolt head.

Don't Immediately Reach for Maximum Impact Force

An impact gun can be useful when appropriate, but uncontrolled impact force on a severely damaged fastener can destroy the remaining grip.

Don't Heat Everything Around the Fastener

Heat should be controlled and deliberate. Exhaust areas can contain materials that are easily damaged or ignited.

Don't Ignore the Condition of the Threads

Successfully removing the bolt is only half the repair. Inspect the threaded hole and mating surfaces afterward.

Replacing the Fastener Correctly

Once the damaged bolt is removed, clean the threaded area and inspect it carefully.

Check for:

• Damaged threads

• Excessive corrosion

• Cracks around the mounting point

• Distorted exhaust flanges

• Missing or damaged hardware

Use the manufacturer's specified replacement hardware and tightening procedure whenever available.

For critical engine and exhaust components, follow the vehicle's service information for the correct torque specification and any required tightening sequence.

A Better Strategy for the Next Repair

The easiest rounded bolt to remove is the one you never damage in the first place.

Use the correct socket size, keep your tools in good condition, seat sockets completely, and avoid excessive force at an angle. During reassembly, use the specified torque rather than relying on guesswork.

For frequently serviced exhaust hardware, corrosion-resistant replacement fasteners may also be appropriate when permitted by the manufacturer's specifications.

Final Workshop Takeaway

Removing a rounded-off exhaust bolt is an escalation process: clean it, penetrate it, establish solid tool engagement, apply controlled force, and only then move toward extraction or drilling.

The professional approach is not about using the biggest tool first. It is about preserving the surrounding components while progressively increasing the level of intervention until the fastener comes free.
