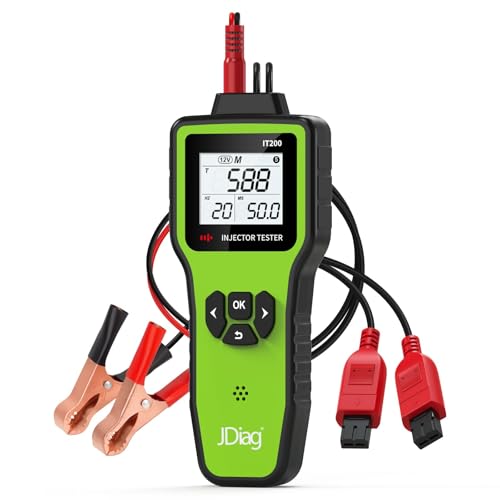

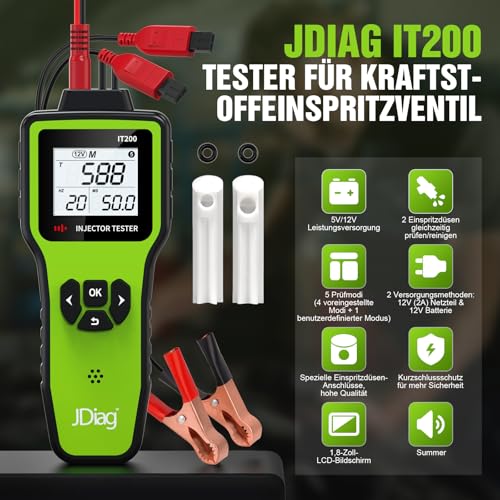

JDIAG Universal Fuel Injector Tester Cleaner Kit, Fuel Injector Tester

JDIAG Universal Fuel Injector Tester Cleaner Kit, Fuel Injector Tester

$59.74 USD
$59.74 USD
Sale Sold out
Taxes included.

About this item

  • 【Universal Fuel Injector Tester and Cleaner Tool Kit】The JDIAG universal fuel injector tester efficiently tests 5V and 12V fuel injectors using 4 preset modes and 1 customizable mode, allowing adjustments to frequency, pulse width, and pulse count (up to 10 pulse modes). This helps diagnose common issues like clogging, leakage, damage, and burnout. Additionally, The fuel injector cleaner kit also includes two cleaning adapters of different sizes, which work with the pulse mode for fast and effective injector cleaning.

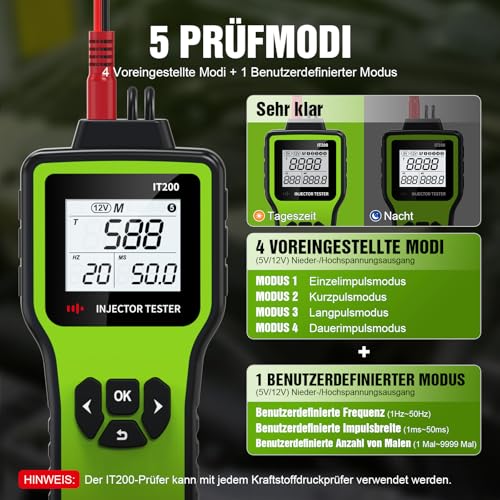

  • 【5 Test Modes】JDIAG fuel injector tester is equipped with 5 test modes, including Single Pulse Mode, Short Pulse Mode, Long Pulse Mode, Continuous Pulse Mode and Custom Mode, which can be customized according to the needs of frequency (1Hz~50Hz), pulse width (1ms~50ms) and number of times (1 time~9999 times). Users can select any one of these modes to test the condition of the injector. Among them, the continuous pulse mode can help you to identify good and bad injectors when the engine is off.

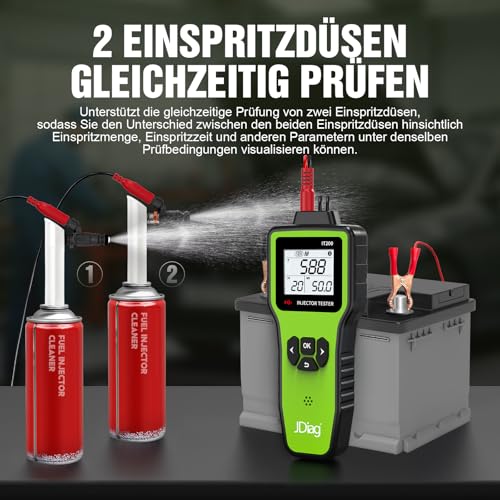

  • 【Test 2 Injectors Simultaneously】This fuel injector cleaner tool features two high-quality injector-specific pulse output terminals that offer greater durability compared to most terminal wires. Supports simultaneous testing of two injectors, allowing you to visualize the difference between the two injectors in terms of injection volume, injection time and other parameters under the same test conditions.

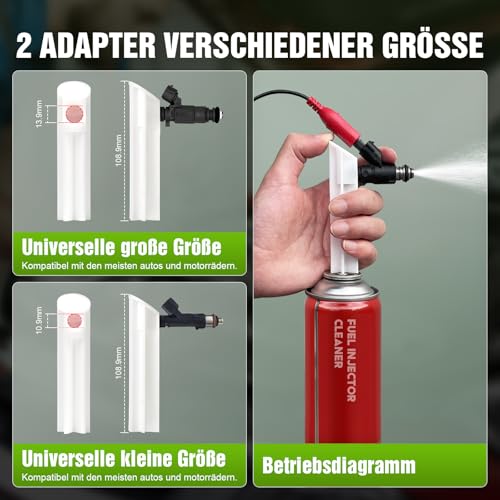

  • 【2 Size Adapters & Wide Compatibility】Our injector tester includes both a large and a small universal adapter, making it compatible with most automotive and motorcycle injectors. The JDIAG IT200 fuel injector cleaning kit can be easily connected to any fuel pressure tester, allowing for convenient testing and cleaning of fuel injectors.

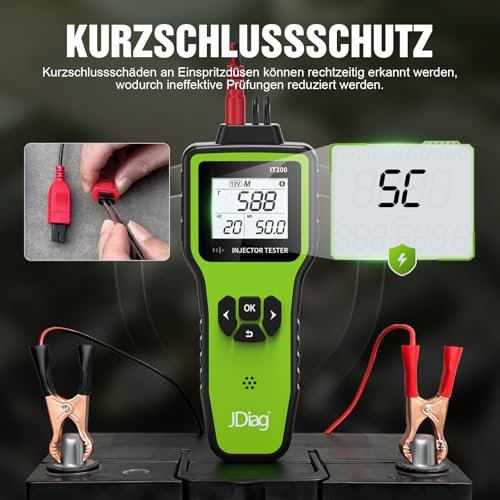

  • 【Intelligent Short Circuit Protection & Buzzer】When a short circuit occurs in the device, the screen will displays "SC" and stops executing all commands until the short circuit is lifted. During the test, the buzzer will beep continuo-usly, and at the same time, accompanied by a red LED light indication, after the command is executed, the LED light will go off, and the buzzer will stop chirping.

Overview

  • Brand: JDIAG
  • Style: Compact
  • Min. Operating Voltage: 8 volts
  • Unit Count: 1 Count
  • Number of Items: 1
