12V Fuse Block with Relay 6 Way with Acc Interface ATC ATO Blade Fuses, Relay Box 12V Automotive Fuse Panel with LED Indicator for Auto Marine Car Boat RV - color: 6 Way Fuse Block - Relay

12V Fuse Block with Relay 6 Way with Acc Interface ATC ATO Blade Fuses, Relay Box 12V Automotive Fuse Panel with LED Indicator for Auto Marine Car Boat RV - color: 6 Way Fuse Block - Relay

$38.16 USD
$38.16 USD
Sale Sold out
Taxes included.

About this item

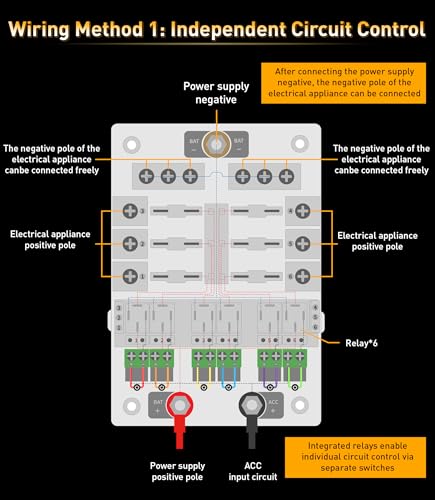

  • Independent Circuit Control: The 12v fuse block with relay enable individual circuit control via separate switches. Relays allow low-current control of high-current devices, reducing energy consumption. The fuse relay block features optimized switch design to prevent power waste and simplify wiring. Individual circuit control particularly effective for marine/RV applications.

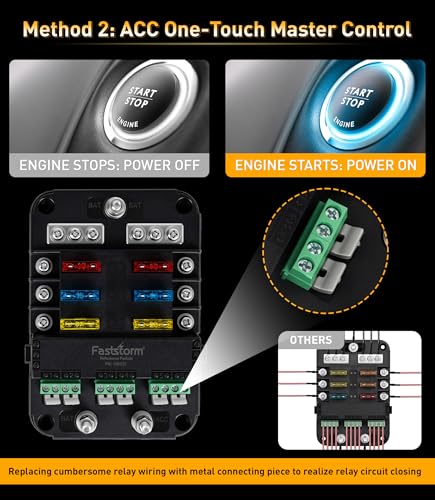

  • ACC One-Touch Master Control: Contains 6 metal connecting piece for achieving relay circuit closure. Enables full-circuit ACC control with minimal wiring. When the car key is turned off, the 12v fuse panel will cut off the power directly and no current will pass through, prevents power leakage for intelligent operation. You can freely choose of connecting cable or metal connecting pieces in the relay position

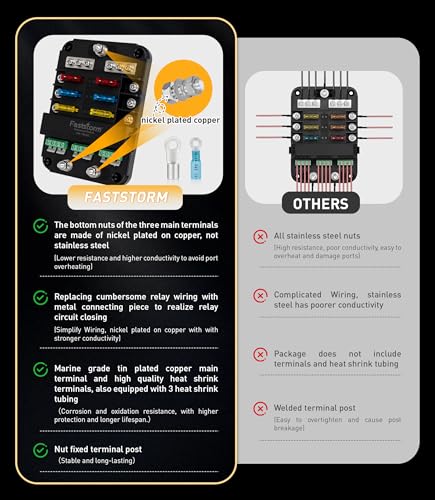

  • Upgrade Complete Kit: The bottom nut of 3 main terminals in the fuse box with relay feature nickel plated copper nuts replacing stainless steel nuts, realize lower resistance & enhanced conductivity to avoid port overheating, minimizes deformation/burnout/short-circuit risks; marine grade tin plated copper main terminal and high quality heat shrink terminals, corrosion and oxidation resistance, with higher protection and longer lifespan. Note: The top nut has not changed, be careful not to confuse them.

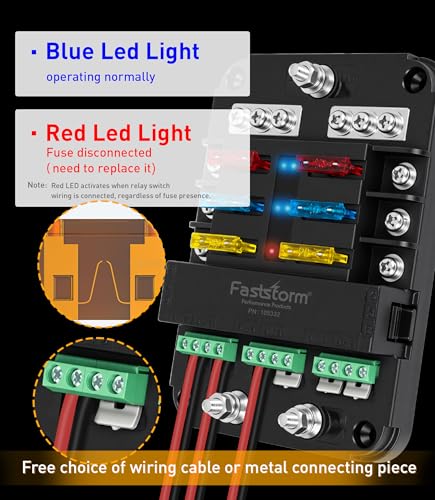

  • LED Indicator for Circuit Issues: In this fuse relay panel each circuit has a LED indicator, When the blue light is on, it means that circuit is functioning normally, When the red light is on, it means that the fuse has been disconnected, remind you to check and replace the blown fuse. Note: Red LED activates when relay switch wiring is connected, regardless of fuse presence.
  • Scope of Application: The automotive relay box can be directly connected to any electrical circuit on the car/boat, waterproof up to IP53, such as roof lights, car headlights, wide-view lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc. Widely used in various vehicles, including cars, yachts, boats, RVs, buses, Trucks, Trailers, RZRs, UTVs etc.

Overview

  • Current Rating: 80 A
  • Connector Type: Screw, Idc
  • Number Of Contacts: 6
  • Mounting Type: DIN Rail Mount
  • Material: ABS
  • Color: 6 Way Fuse Block - Relay
  • Brand: FASTSTORM
  • Voltage: 12 volts_of_direct_current
  • Number Of Poles: 6
  • Temperature Range: -4E+1 °C
