3 Pcs 00432101 5-Pin 12V 40A Multi-Purpose Relay Heavy Duty Relay - Replaces 430-300 AYP 109748X Ariens 00432101 Hustler 026237 Exmark 98-7249 1-643275 Ariens EZR1440 EZR1540 EZR1640

3 Pcs 00432101 5-Pin 12V 40A Multi-Purpose Relay Heavy Duty Relay - Replaces 430-300 AYP 109748X Ariens 00432101 Hustler 026237 Exmark 98-7249 1-643275 Ariens EZR1440 EZR1540 EZR1640

$18.21 USD
$18.21 USD
Sale Sold out
Taxes included.

About this item

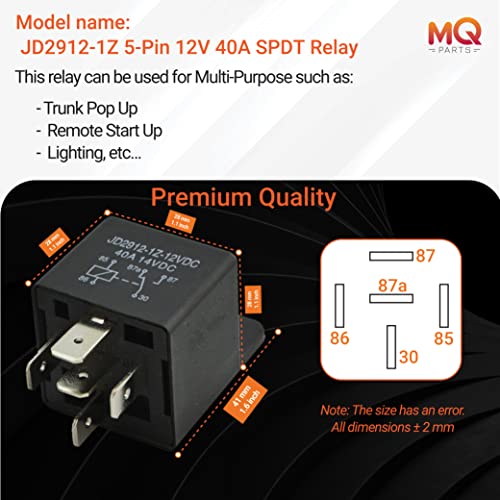

  • Please carefully check the dimensions and direction of your old relay's poles make sure your old relay is the same as ours in pin and size.

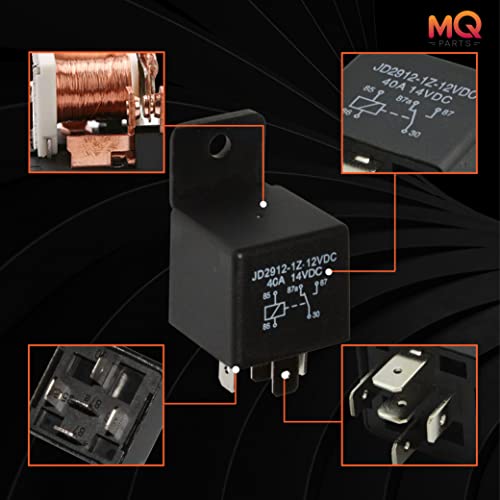

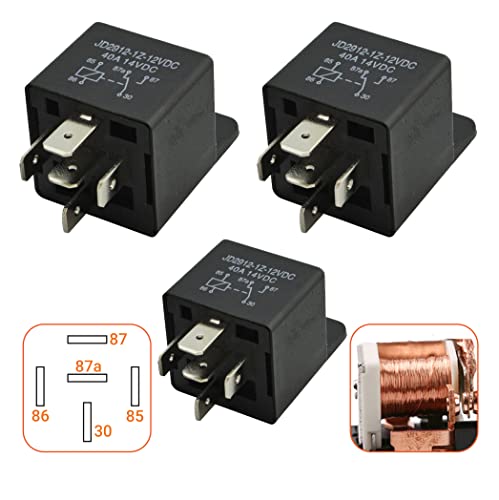

  • WHAT YOU GET: 3 x 12V 5 Pin 40Amp Automotive Motor Relay. Model name: JD1914-12V-40A SPDT Relay (5 Terminals). Replace part number: 08746800, 045388, 039485, 109748, 109748X 532109748 539102914 430-300 040216 00432100 00432101 03042800 1-643275 98-7249 104-026-401 31-9369, 026237. NOTE: Please check the direction of the poles carefully to avoid buying the incorrect product.

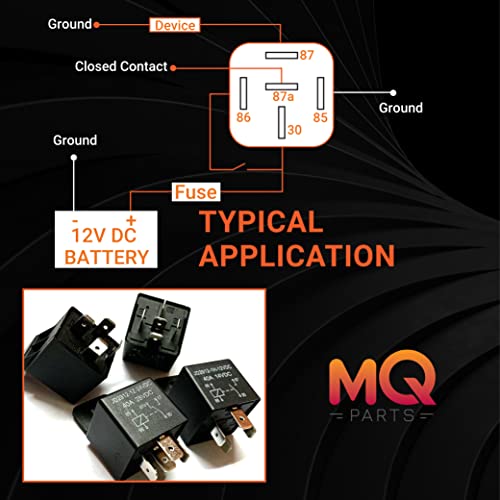

  • SPECIFICATIONS: Nominal Voltage(VDC): 12V; Nominal Coil power: 1.8W; Coil Resistance: 80Ω; Mix Release (VDC): 1.2~2.4; Max Applicable Voltage (VDC): 14. This 12V 5 Pin 40Amp SPDT Automotive Motor Relay can use for Multi-Purpose, such as car tail light, engine compartment, electric cooling fans, electric water pumps, electric fuel pumps, shaved door handles solenoids, trunk solenoids, and other equipment, etc

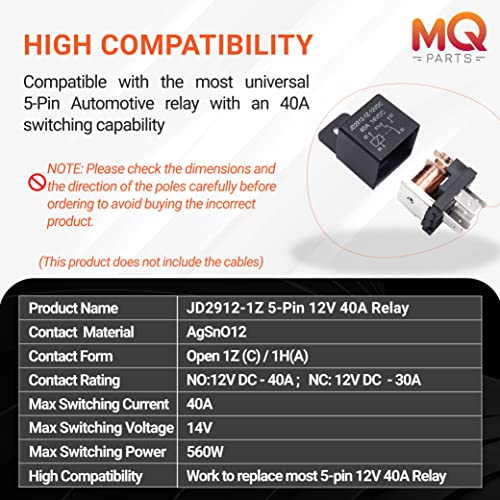

  • PLUG AND PLAY: Compatible with the most universal 12V 5-Pin automotive relay with a 40A switching capability. Easy to process your demand. Compatible with Ariens EZR1440 EZR1540 EZR1640 EZR1648 EZR1742, Gravely Promaster 30-H 50 200 300 400, and Poulan Lawn Tractor PP1846 PP1846A PP20H46A PP22H50 PP22H50A
  • PREMIUM QUALITY: Our 12V 5-Pin 40Amp SPDT Automotive Motor Relay is made from durable high-quality materials (ABS plastic, copper, and metal), and all are well-tested carefully by the manufacturer. Ensures long-lasting and high performance.
  • MONEY-BACK GUARANTEE: MQparts is especially interested in customer experience. If for any reason you're not completely satisfied, please contact us, we will assit you.

Overview

  • Connector Type: Solder
  • Contact Material: Abs Plastic, Copper, and Metal
  • Contact Type: Spdt
  • Current Rating: 40 A
  • Mounting Type: Socket Mount
