36V Motor Kit 500W Brushed Electric Motor and Controller, Throttle with Key - size: 36V 500W

36V Motor Kit 500W Brushed Electric Motor and Controller, Throttle with Key - size: 36V 500W

$181.72 USD
$181.72 USD
Sale Sold out
Taxes included.

About this item

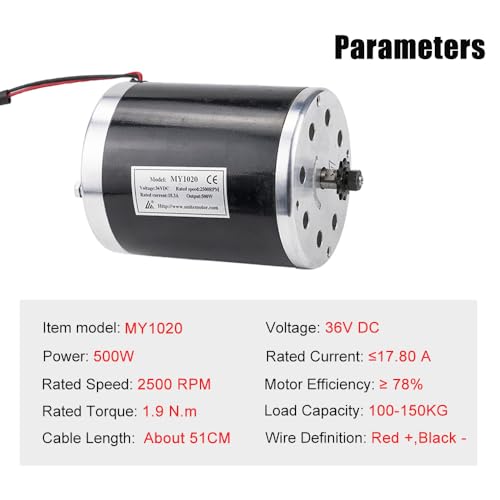

  • 【Brushed Electric Motor Kit Specifications】Voltage: 36V DC, Power: 500W, Rated Current: ≤17.8 A, Rated Speed: 2500RPM, Rated Torque: 1.9N.m, Motor Sprocket : 25H 11T, Motor efficiency: ≥ 78%, Chain Sprocket: 25H 80 Teeth, Chain: 25H, Freewheel: 25H, Electric Bike Motor Type: MY1020

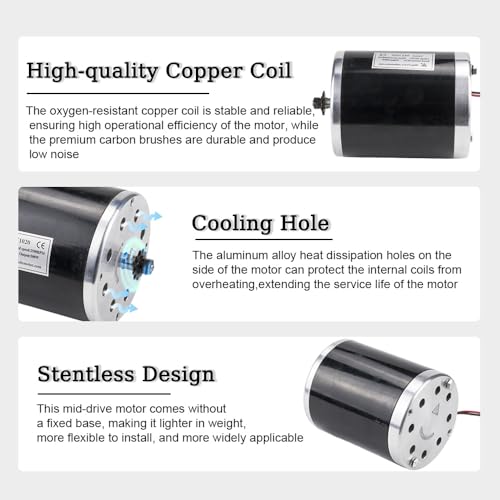

  • 【Reliable Brushed High Speed Motor】The permanent magnet electric motor is composed of low-heat copper wire stator winding and aluminum alloy casing,reducing energy loss and enabling rapid heat dissipation.The bearings of the electric brushed dc motor are very robust and wear-resistant for long-term use.The brushed motor kit operates smoothly and seamlessly,low noise and high-performance
  • 【Well Build Brushed Controller 】The brushed motor speed controller can provide steady speed and sensitive control of braking and direction changes.Rugged aluminum housing with integrated cooling fins can protect inner circuit.With over-current, overload, and under-voltage protection,the brush dc controller is more reliability and safety

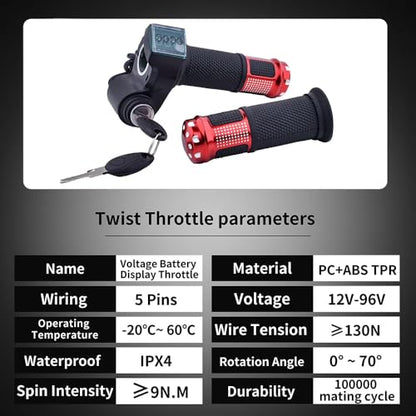

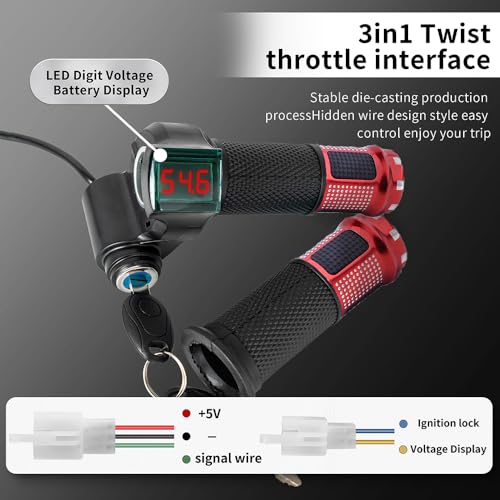

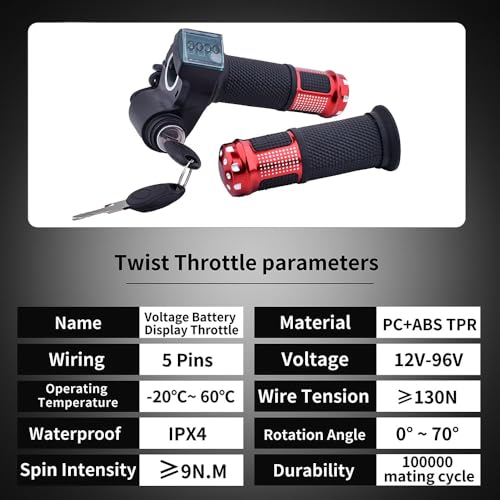

  • 【Multifunctional Electric Throttle】The ebike full twist throttle is equipped with led digit voltage battery display and ignition key switch. By turning the real-time voltage value can accurately determine the amount of the remaining amount of electricity and charging in time.The handle grips are comfortable to hold, non-slip, smoothly accelerate,waterproof, and durable
  • 【Electric Brush Motor Kit Application】This e bike brush motor kit features high operating efficiency,large start torque and strong power,which can tackle resistant terrains such as grasslands or hills.It is widely applied in razor MX350,razor MX500,TT350R mini electric dirt bike,razor moped scooter,pocket bike,go cart,cart,small electric Moto, etc.For the replacement or upgrade of these vehicles and other diy project

Overview

  • Brand: Haeweypf
  • Model Name: Brush DC High-speed Motor
  • Speed: 2500 rpm
  • Voltage: 36 volts_of_direct_current
  • Horsepower: 500 watts

Low stock: 10 left

View full details

Reviews

  • ⭐⭐⭐⭐⭐

    Ethan Parker — Columbus, Ohio

    The products were easy to browse, and the specifications helped me compare the options before ordering. Everything arrived as expected and worked well for my garage project. I would shop with WrenchVanta again when I need more parts or tools.

  • ⭐⭐⭐⭐⭐

    Marcus Bennett — Phoenix, Arizona

    I ordered several maintenance items and was pleased with the overall experience. The product information was clear, the items were packaged securely, and everything fit the needs of my project. A practical store for automotive and garage essentials.

  • ⭐⭐⭐⭐⭐

    Olivia Turner — Tampa, Florida

    WrenchVanta offers a useful range of products without making the shopping process feel complicated. I found what I needed for routine vehicle maintenance, and the order arrived in good condition. The entire process was straightforward and convenient.

  • ⭐⭐⭐⭐⭐

    Daniel Foster — Sacramento, California

    I picked up a few tools and replacement parts for an ongoing garage project. The products matched their descriptions and have been useful so far. I especially appreciated being able to find different types of automotive supplies in one place.
