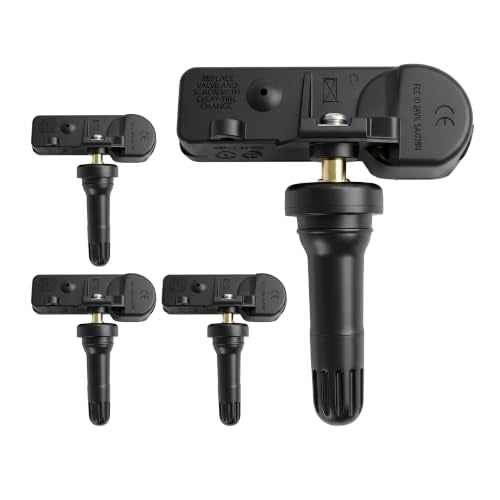

6F2Z1A189A Tpms Sensor Tire Sensors Tire Pressure Monitoring Sensor

About this item

• 🚗【VEHICLE FITMENT】：Compatible with Ford Edge 2007-2008, Fusion 2007-2009, Escape 2006-2008, Freestar 2006-2007, Explorer 2006-2010, Crown Victoria 2006-2011; Compatible with Mustang F150 2007-2008, Ranger 2006-2010, Taurus 2008-2010. Compatible with Mercury Milan 2007-2009, Mariner 2005-2008, Grand Marquis 2006-2011; Compatible with Lincoln MKZ 2007-2009, Zephyr 2006, Mark LT 2007-2008, Navigator 2007-2010, Town Car 2006-2010.
• 🚗【REFERENCE NUMBER】：Replace Part Number/ OE Number：6F2Z1A189A 7L1Z1A189A. Please select the appropriate tire pressure sensor according to the vehicle model to ensure that the component you order is correct.

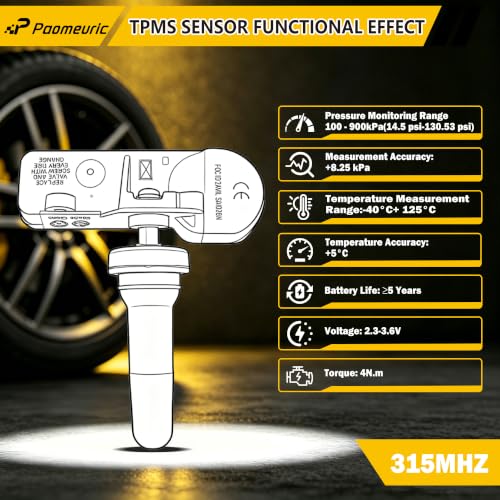

• 🚗【SPECIFICATIONS】：① Frequency: 315 MHz / 433 MHz; ② Location: Front and Rear Wheel; ③ Body Material: Polyamide Plastic; ④ Valve Material: Aluminium Alloy; ⑤ Certification: IC, FCC Certification; ⑥ Operating Temperature Range: -40℃-120℃; ⑦ Pressure Monitoring Range: 0-900KPa; ⑧ Battery: ≥ 5 Years Lifespan.
• 🚗【Precision Tire Pressure Sensor】：This upgraded TPMS (Tire Pressure Monitoring System) sensor not only effectively resolves issues such as a persistent tire pressure warning light, unreadable tire pressure data, and inaccurate air leak monitoring, but it also offers a wealth of additional advantages. It features an advanced dual-frequency smart chip that seamlessly switches between 315MHz and 433MHz signal bands, while key enhancements have significantly boosted its signal transmission accuracy, electromagnetic interference resistance, and extreme temperature durability.
• 🚗【Resolve the malfunction】：Our TPMS sensors effectively prevent abnormal tire wear, high-speed blowout risks, increased fuel consumption, and rough rides caused by low tire pressure. Even in harsh wheel operating environments—such as extreme cold or scorching sun—they provide precise, real-time monitoring of air pressure and tire temperature to significantly enhance driving safety and fuel economy, while effectively resolving common TPMS trouble codes like C0750/C0755, C0760/C0765, C0071.
• 🚗【Directly Fit】：Replace directly with the original factory and original equipment. We provide detailed usage instructions and matching guidelines. You can directly replace the failed old tire pressure sensor. The entire installation can be completed within 60 minutes. The sensor is equipped with a high-quality automotive-grade battery, and its normal service life can reach 5-8 years. Please refer to our compatible vehicle models before purchase.
• 🚗【Installation steps】：① Remove the wheel, evacuate the air inside the tire, and separate the tire rim from the hub on the tire deflation machine. ② Locate the old tire pressure sensor, remove the fixing nut, and take it off. ③ Clean the dirt around the valve mouth installation hole on the hub. ④ Insert the new tire pressure sensor into the hub hole, and use a torque wrench to tighten the valve mouth nut to the specified torque. ⑤ Reinstall the tire onto the hub and inflate it to the standard pressure. ⑥ Put the wheel back onto the vehicle. ⑦ Use the TPMS activation tool or through the vehicle's dashboard menu to match the system and ensure the data is displayed normally.
• 🚗【Buy with Confidence】：This carefully designed tire pressure sensor comes with a one-year warranty. If any issues arise due to product defects or signal failure, please contact us at any time, and we will replace it with a new one at no charge. All messages will be replied to within 24 hours. Our tire pressure sensors undergo rigorous dynamic balance testing, high-pressure air tightness testing, and extreme temperature endurance testing before leaving the factory, ensuring every trip you take is safe and smooth.

Overview

• Brand: Generic
• Item dimensions L x W x H: 4.33 x 3.15 x 2.76 inches
• Material: Alloy Steel, Aluminum, Metal
• Item Weight: 0.13 kg
• Style: Modern
