BlueStars 925-04228 Ignition Switch 5 Terminals 3 Position with Keys - size: 925-04228 - 5 Terminals

BlueStars 925-04228 Ignition Switch 5 Terminals 3 Position with Keys - size: 925-04228 - 5 Terminals

$24.88 USD
$24.88 USD
Sale Sold out
Taxes included.

About this item

  • IMPORTANT NOTE: Please check the measures and your engine's model carefully before purchasing to guarantee that you receive the correct part. Specs: 3 Position 5 Terminals with Keys
  • REPLACEMENT PART NUMBERS: Replaces Husqvarna 583070001; Delta 6900-37M; MTD Cub Cadet 725-04228, 925-04228; John Deere AM133596, M148279, GY00191; Ariens 03290500; Bad Boy 077-8076-00; Dixie Chopper 500017

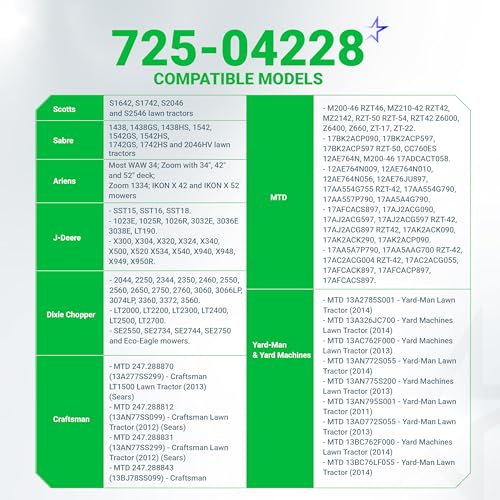

  • WIDE COMPATIBILITY: Compatible with Cub Cadet RZT-17, RZT-L42, RZT-L46, RZT-L50, RZT-L54, Tank L-48, Tank L-54, Tank L-60, Z-Force L48, Z-Force L54, Z-Force L60. Fits for Troy-Bilt Colt XP, Mustang 42 XP, 46 XP, 50 XP, 54 XP, Z42, Z46. For Ariens most WAW 34; Zoom with 34", 42" and 52" deck; Zoom 1334; IKON X 42, IKON X 52 mowers. For John Deere SST15 SST16 SST18 1023E 1025R 1026R 3032E 3036E 3038E LT190 X300 X304 X320 X324 X340 X500 X520 X534 X540 X940 X948 X949 X950R
  • COMPATIBLE MODELS: For Dixie Chopper 2044 2250 2344 2350 2460 2550 2560 2650 2750 2760 3060 3066LP 3074LP 3360 3372 3560 LT2000 LT2200 LT2300 LT2400 LT2500 LT2700 SE2550 SE2734 SE2744 SE2750 and Eco-Eagle mowers. For MTD M200-46 RZT46, MZ210-42 RZT42, MZ2142, RZT-50 RZT-54, RZT42 Z6000, Z6400, Z660, ZT-17, ZT-22, etc. For Scotts S1642 S1742 S2046 S2546 lawn tractors; Sabre 1438 1438GS 1438HS 1542 1542GS 1542HS 1742GS 1742HS 2046HV lawn tractors

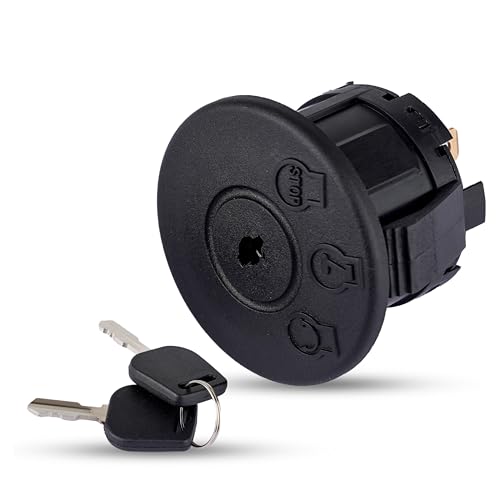

  • RELIABLE IGNITION FOR ENGINE START-UP: The 725-04228 Ignition Starter Switch is designed to control the starting and stopping of your Lawn Mower’s engine with precision and safety. It features 5 terminal connectors and a 3-position rotary design. The positions from left to right (turning key clockwise) refer to stop, run/on, and crank. Each package includes 02 IGNITION KEYS, giving you a spare for peace of mind. (Note: This ignition switch doesn't control the headlight!)
  • SUPERIOR MATERIAL: Constructed with an ABS Plastic housing, this switch is built to handle tough outdoor conditions such as heat, moisture, dust, and vibration. The Brass-plated terminals provide excellent conductivity and corrosion resistance, ensuring reliable electrical contact and extended product life, even during high-season usage
  • 100% LIFETIME PROTECTION: Enjoy reliable performance with our lifetime protection, ensuring that your product will always be covered for any defects or issues that may arise

Overview

  • Operation Mode: manual
  • Contact Type: Normally Open
  • Connector Type: Screw Terminals
  • Brand: BlueStars
  • Switch Type: Push Button With Rotary Key
  • Terminal: Connector
  • Material: ABS Plastic, Brass
  • Item dimensions L x W x H: 1 x 1 x 1 inches
  • Circuit Type: 3-way
  • Mounting Type: Flush Mount
