Electric Fan Wiring Kit Electric Fan Relay Kit with Thermostat Radiator Fan Sensor Switch Electric Cooling Fan Thermostat Kit Temperature Sensor Switch 185 On 175 Off, 40 AMP Waterproof Relay Kit

Electric Fan Wiring Kit Electric Fan Relay Kit with Thermostat Radiator Fan Sensor Switch Electric Cooling Fan Thermostat Kit Temperature Sensor Switch 185 On 175 Off, 40 AMP Waterproof Relay Kit

$36.49 USD
$36.49 USD
Sale Sold out
Taxes included.

About this item

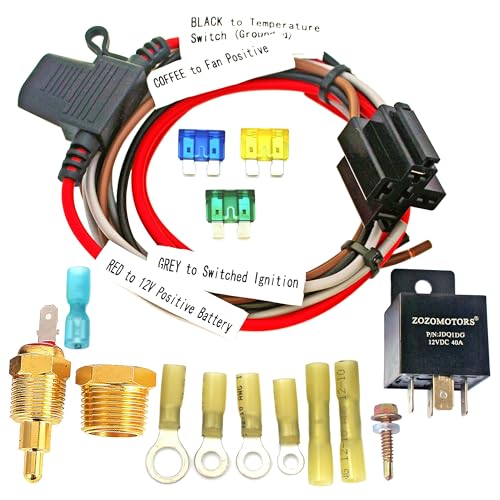

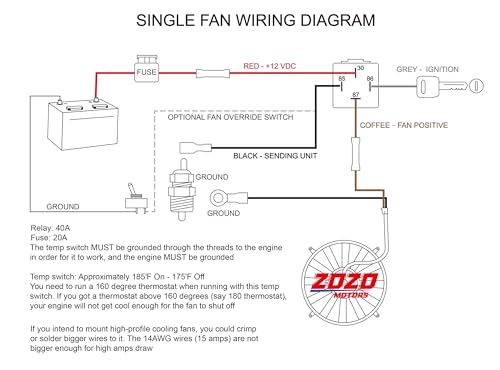

  • All wires are clearly labeled and color-coded. And an easy-to-follow wiring diagram is included in the package. RED to 12VDC positive battery terminal, COFFEE to Fan Positive, BLACK to Sending Unit, GREY to Ignition per wiring diagram. Direct replacement part fits 10, 12, 14, and 16 inch cooling fans. For dual fan wiring, you would need two of this relay kit

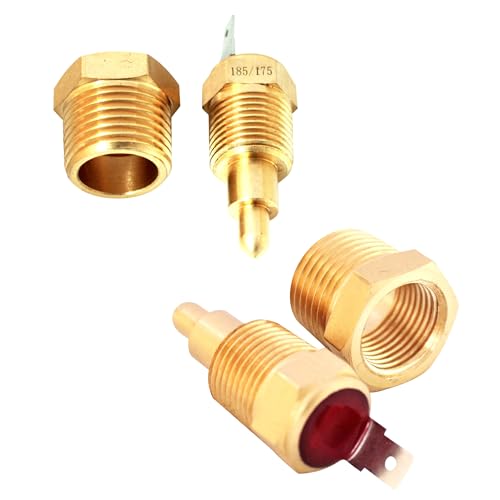

  • Temperature switch turns on fan approximately at 185 Degrees and Off at 175 Degrees. The temp sensor has a 3/8 inch pipe thread, and a 1/2 inch adapter included. Please note: you need to run a 160 degrees thermostat when running this kit with this temp switch. If you got a thermostat above 160 degrees (say 180 thermostat) , your engine will not get cool enough for the fan to shut off

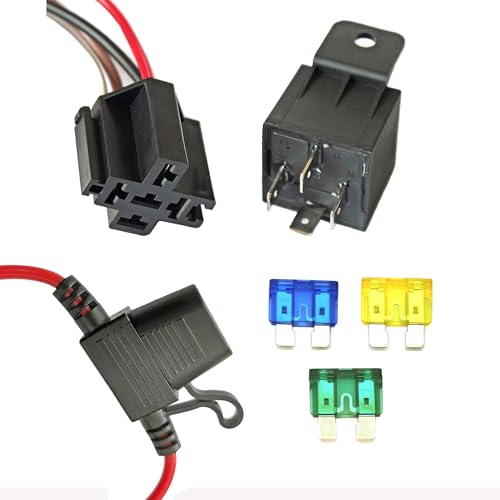

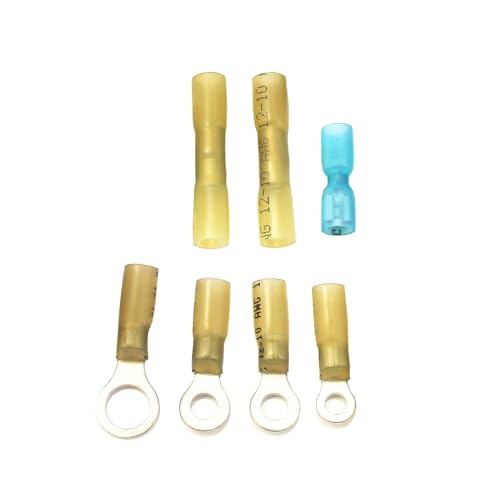

  • This electric cooling fan kit comes with everything you need, includes 40A relay, wiring harness, temperature switch, 3/8 inch to 1/2 inch adapter, inline waterproof fuse holder, fuses, 1 spade connector for the temp sensor, 4 ring terminals and 2 wire connectors
  • The temperature switch supplied with this kit is OE style to mount in the cylinder head of the engine or any water jacket if needed. The temperature switch MUST be grounded through the threads to the engine in order for it to work, and the engine MUST be grounded
  • This relay kit is enough to run medium profile or low profile electric fan. For high profile fan, you can use ZOZOMOTORS heavy duty relay kit P/N 30247. Or crimp/solder bigger wires yourself for pin 30 & 87 to carry enough load for the fan (10 gauge wire - 30 Amps). Recommend to use dual fan relay kit to run dual fan set up

Overview

  • Connector Type: Ring Terminal, Pigtail Connector
  • Contact Material: Copper
  • Contact Type: Normally Open
  • Current Rating: 40 A
  • Mounting Type: Chassis Mount

Low stock: 10 left

View full details
