JIFETOR Transmission Fluid Pump Pneumatic Extractor and Dispenser Tool Kit - color: Black

About this item

• Transmission Fluid: Transmission fluid lubricates and cools the internal parts of the transmissions, and keeps your transmission smooth and on time. The transmission is designed to operate at high temperatures, but constant overheating can destroy the fluid. Deteriorated fluid is easy to cause the lubrication effect to be greatly reduced, thus aggravating transmission wear, and serious until the failure of transmission. Please check your car's manual to replace the transmission fluid regularly

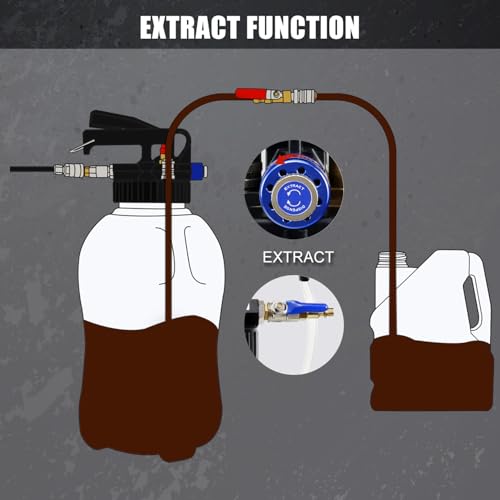

• Fluid Extractor And Dispenser: This ATF pump tool has the function of pumping and filling two-way liquid transfer. There are air inlet ball valve and blue screw valve on the pump cap assembly. When both the valves are turned to the EXTRACT at the same time, the tool is in the state of extracting liquid, you can extract the vehicle ATF or other liquid. When the two valves are both turned to the DISPENSE, the liquid in the 10L pot can be pumped out to complete the liquid filling

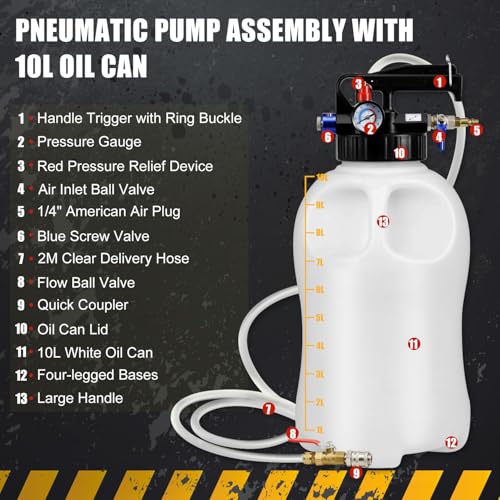

• Pneumatic Pump Cap Assembly: The pump assembly is equipped with a lockable handle trigger, press to trigger and locked by the ring buckle. You can pull the ring of red pressure relief device to release the pressure manually, and the pressure also can be automatically released when it is higher than 43psi. 2M detachable clear delivery hose with ball valve for fluid flow control and quick coupler for ATF adapter. 1/4" American and European air plugs are equipped for connecting your air compressor
• 10L Capacity Oil Can: All components are carefully crafted with reinforcement material, allowing for long term use. 10L large capacity white tank marked with 1-10L accurate scale, make it easier to observe refill process and capacity. The arc bottom design of the oil pot ensures that the center is the lowest and minimizes the final fluid residue, and equipped with four-legged bases to ensure the stability of the tank. Conformable handles make it easier to grip and move the 10L oil can
• 3PCS 1M Tubes: The transmission fluid fill pump set contains three 1M-long pipes that can be inserted into various pipes or tanks to extract and dispense various non-corrosive low-concentration liquids, such as engine oil, gear oil, coolant, water and so on. You don't need to climb in and out under the lifted vehicle. Do not use it with high volatility products such as petrol, gasoline, diesel oil or other fluid features with high corrosion, high alkalinity, or high temperature

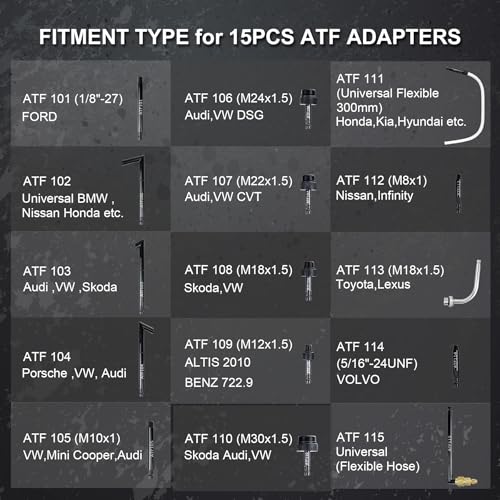

• 15PCS ATF Adapters: Fluid pump kit contains 15 transmission fluid adapters, which metal part is made of hardened steel with black electrophoretic surface treatment for rust and corrosion protection. Adapters are labeled with NO. for finding the suitable model quickly from manual. A variety of adapters allow the ATF refill kit to fit various models such as Ford, BMW, Nissan, Honda, Audi, VW DSG, VW CVT, Skoda, Porsche, Benz, Mini Cooper, Kia, Toyota, Hyundai, Infiniti, VOLVO, Lexus

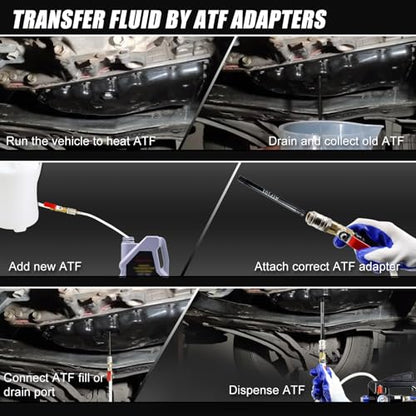

• Easy Operation with ATF Adapter: Run the vehicle to heat the ATF, then turn it off. Jack up the vehicle, then drain and collect the old ATF. Connect your air compressor to extract an appropriate amount of new transmission fluid into the transmission refill pump with a 3M tube, then attach a correct ATF adapter to replace the 3M tube. Connect the ATF adapter to the gearbox filler or drain port, then add new transmission fluid into gearbox until desired level. Clean up the used ATF transfer pump
• Packing List: JIFETOR transmission filling pump tool kit contains one 10L oil can with pneumatic pump assembly and one detachable 2M transparent hose, three 1M long pipes, 15PCS transmission fluid adapters well packed in a customized blow molding case, one spare 1/4" European air plug. JIFETOR transmission fluid dispense tool kit will be a good helper for you to replace the transmission oil and other non-corrosive low-concentration liquids
