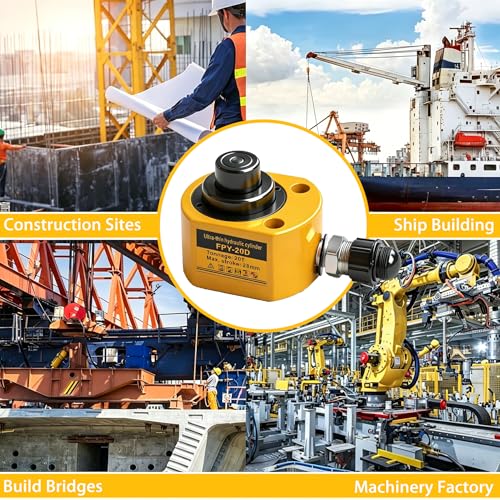

Jooptoolwook 20T Multi-Section Low Profile Hydraulic Ram Jack, 1.1" - size: 20T

Jooptoolwook 20T Multi-Section Low Profile Hydraulic Ram Jack, 1.1" - size: 20T

$149.38 USD
$149.38 USD
Sale Sold out
Taxes included.

About this item

  • Important Parameters: Tonnage: 20T | Stroke:0.47"/12mm (Section 1), 0.63"/16mm (Section 2) | Oil storage capacity: 41CC | Self height: 2.17"/55mm | Weight: 6.17 lbs/2.8kg | Compression area: 3.04 square inches/19.6cm | Piston Rod Diameter: 1.97" / 50mm (Section 1), 1.18" / 30mm (Section 2) | External diameter: 3.11x3.90 inches/66x83mm | Used with Pump: CP-180(not included)
  • Multi-Section Design for Narrow Spaces: This low-profile hydraulic jack stands at just 2.17 inches in height, yet it has a stroke of up to 1.1 inch. Unlike regular jacks, its multi-section design enables it to be used in much narrower and lower spaces. It effectively maximizes the jack's stroke within the body height, allowing you to lift weights to a greater height. This makes it a more convenient and practical choice for various applications
  • Smooth Lacquered Surface and Dust-Resistant Cover: This hydraulic piston cylinder has a smooth finish, which not only makes its appearance stylish and beautiful but also has excellent rust-proof properties. The hydraulic cylinder jack is made of sturdy and durable metal and is extremely long-lasting. Moreover, it is equipped with a dust cover to ensure that the internal components remain clean and maintain optimal working condition for a long time
  • Convenient Mounting Options: Featuring two pre-drilled holes, this multi-section jack offers convenient mounting options. Whether you need to install it in a workshop, these holes simplify the mounting process. Just note that after pressure release, the piston needs external gravity to retract. This is the normal structural design of the product and is not a quality issue
  • Widely Applicable Range: This small hydraulic jack is widely used in industries such as power, chemical engineering, steel, bridges and machinery. It is suitable for vertical, horizontal and inverted directions, but cannot be used at an angle. To ensure normal operation, all cylinders need to be connected to a sturdy horizontal support surface, rather than a soft or rough surface

Overview

  • Vehicle Service Type: Multipurpose vehicle
  • Material: metal
  • Load Capacity: 20 Ton
  • Maximum Lifting Height: 1.1 inches
  • Brand: Generic
