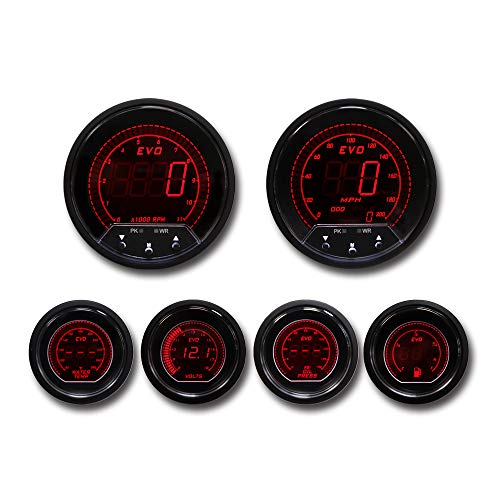

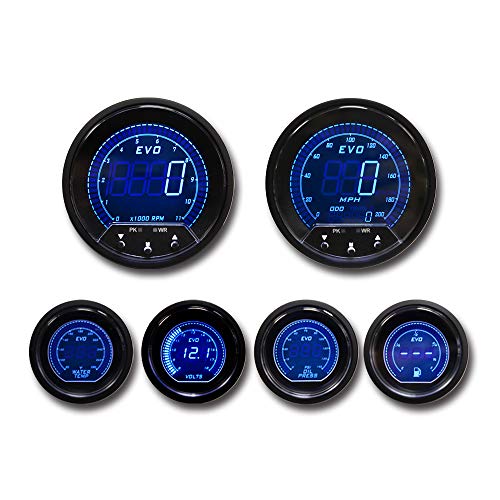

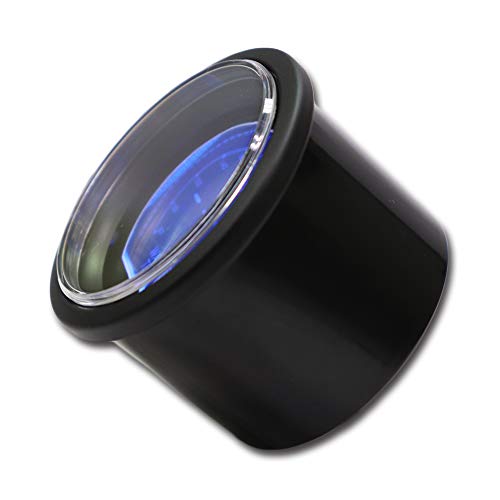

MOTOR METER RACING EVO Series GPS Digital 6 Gauge Set Blue & Red LED - color: Blue & Red, size: EVO Digital GPS Speedometer

MOTOR METER RACING EVO Series GPS Digital 6 Gauge Set Blue & Red LED - color: Blue & Red, size: EVO Digital GPS Speedometer

$730.38 USD
$730.38 USD
Sale Sold out
Taxes included.

About this item

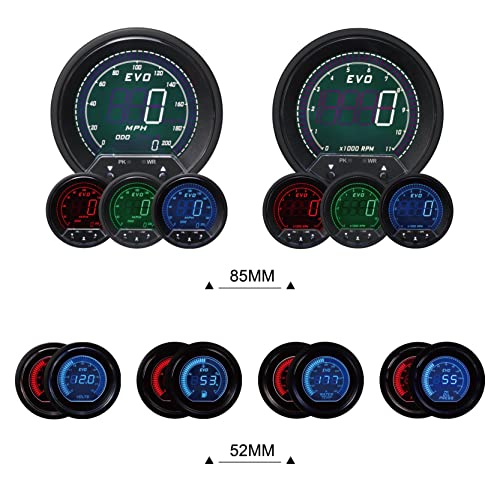

  • SIZES: Speedometer & Tachometer - 85mm (3-3/8").
  • SIZES: Fuel Level, Water Temperature, Oil Pressure & Volt - 52mm (2-1/16").

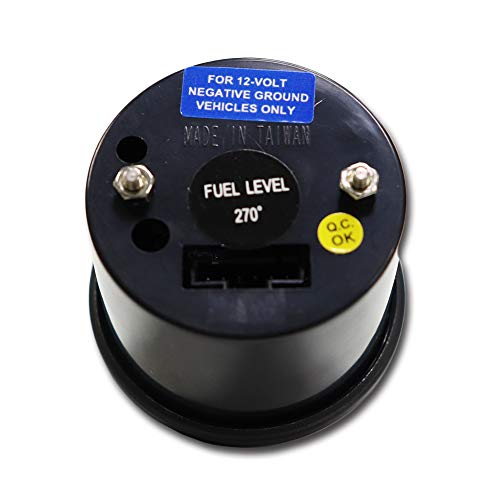

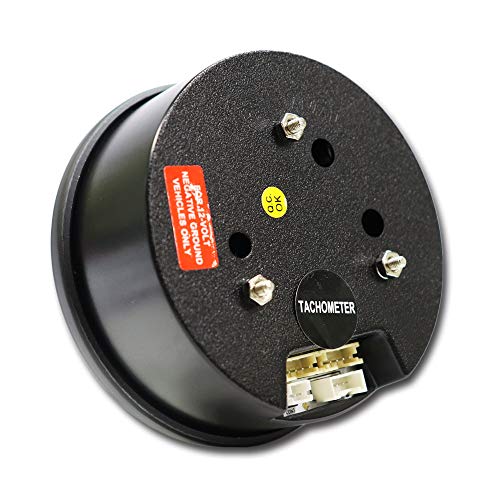

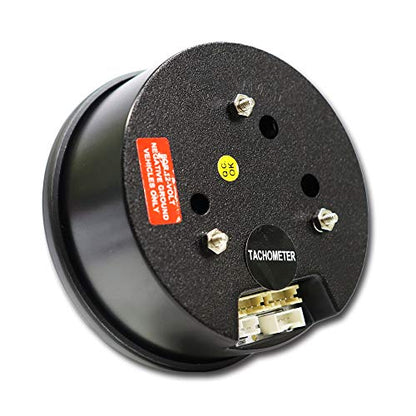

  • Digital Display GPS Speedometer, Odometer & Trip Meter A & B. Tachometer Reads Signals From The ECU, Suitable For 1 To 9 Cylinder Gas-Powered Engines. Please Note: We do not recommend reading the tachometer signal from the coil's negative terminal. Gauge Set Requires 12 Volt Negative Ground Systems.
  • FEATURES: Flat Clear Acrylic Lens, Black Aluminum Bezel & Black Plastic Housing. Applying Latest LCD Movement Technology with Precision Display.
  • FEATURES (SP & TA): 4 Color Switchable Displaying Backlit Color, with 6 Level Brightness Adjustment Available. 4 Color: Blue, Red, White & Green. With Historical Peak Recall & Programmable Warning Function.
  • FEATURES (FL, VO, WT & OP): 2 Color Switchable Displaying Backlit Color, with Brightness Adjustment Available. 2 Color: Blue & Red.
  • COMPATIBLE WITH FUEL LEVEL RESISTANCE: 240 (E) - 33 (F) ohms (Default Setting) / 73 (E) - 10 (F) ohms / 16 (E) - 158 (F) ohms / 0 (E) - 30 (F) ohms / 0 (E) - 90 (F) ohms / 107.5 (E) - 7 (F) ohms / 131 (E) - 12 (F) ohms / 0 (E) - 120 (F) ohms / 10 (E) - 180 (F) ohms.

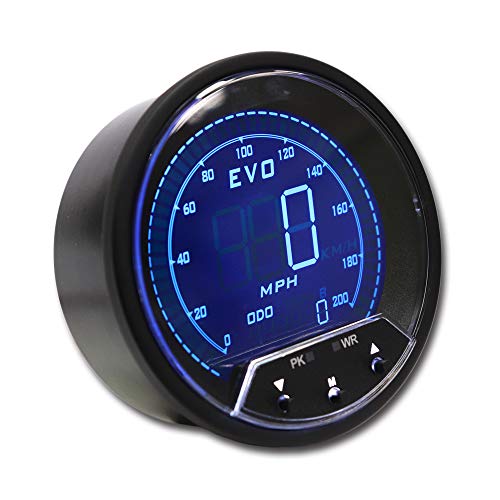

  • PRODUCT DETAIL: Speedometer 0 - 200 MPH, Tachometer 0 - 11000 RPM, Volt 8 - 18 V, Fuel Level E - 1/2 - F (Resistance 240-33 ohms), Water Temperature 100 - 300 °F, Oil Pressure 0 - 150 PSI.

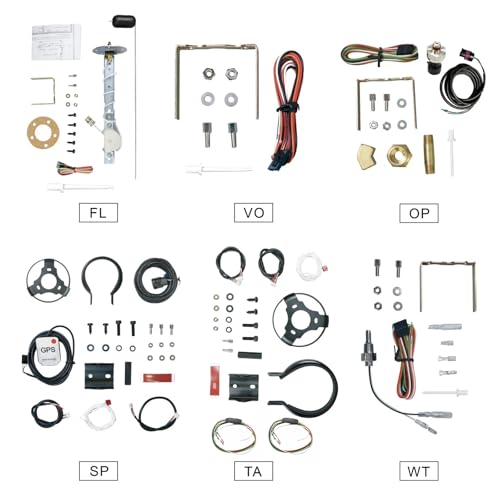

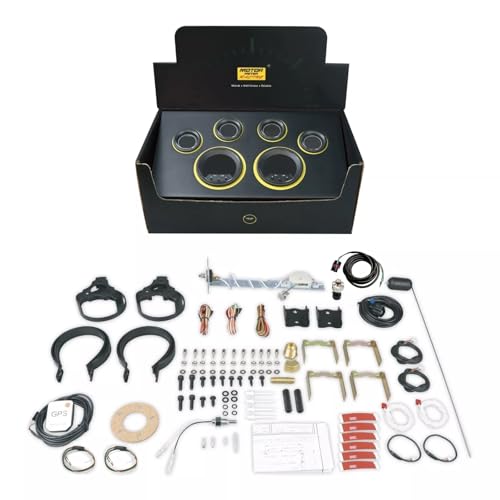

  • PACKAGED: 6 Gauges, GPS Sensor & Harness, Water Temperature Sensor (Thread Size: 1/8 NPT), Electronic Oil Pressure Sensor (Thread Size: 1/8 NPT), Fuel Level Sender (240 - 33 ohms), Power Harness, Daisy Chain, Filter x 2 (For Tachometer), Mounting Hardware, Adjustment Sitck, Installation Instructions.
  • NOTICE: Filter Are Not Necessary For Install, If Tachometer Readout Inaccurate In Idle or Keep Bouncing When Engine Accelerating, Please Install. NOTICE: For Cars Only. Not Recommended For Motorcycles. NOTICE: The Speedometer Features A Rear Switch To Toggle The Signal Reading Mode Between GPS Sensor Mode And ECU Mode. One Year Limited Warranty For Non-Human Factor Damage & Free Lifetime Technical Support.

Overview

  • Brand: MOTOR METER RACING
  • Material: Aluminum
  • Item Weight: 5.3 pounds
  • Item Highlight: GPS Sensor Signal, 3-3/8", 85mm, Speedometer, Tachometer, 2-1/16", 52mm, Volt, Fuel Level ,Water Temp, Oil Pressure, Car GPS Sensor Signal, 3-3/8", 85mm, Speedometer, Tachometer, 2-1/16", 52mm, Volt, Fuel Level ,Water Temp, Oil Pressure, Car
  • Number of Items: 6
