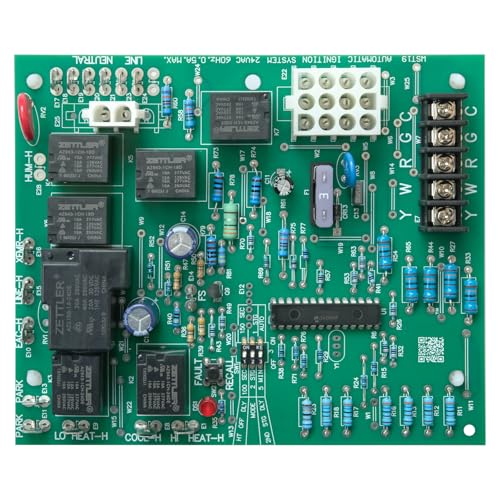

PCBBF162S Furnace Control Board, 50M56-743 Replacement for Goodman Furnace Control Circuit Board, PCBBF132, PCBBF132S,0130F00006, 0130F00006S, PCB00109, PCBBF109, PCBBF122, PCBBF122S

PCBBF162S Furnace Control Board, 50M56-743 Replacement for Goodman Furnace Control Circuit Board, PCBBF132, PCBBF132S,0130F00006, 0130F00006S, PCB00109, PCBBF109, PCBBF122, PCBBF122S

$126.14 USD
$126.14 USD
Sale Sold out
Taxes included.

About this item

  • The PCBBF162S control board kit is an automatic gas HSI Integrated Furnace Control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan. Signals interpreted during continual surveillance of the thermostat and flame sensing element initiate automatic ignition of the burner, sensing of the flame, and system shut-off during normal operation.
  • The PCBBF162S control board incorporate system fault analysis for quick gas flow shut-off, coupled with automatic ignition retry upon sensing a fault correction.Installation should be done by a qualified heating and air conditioning contractor or licensed electrician.If in doubt about whether your wiring is millivolt, line, or low voltage, have it inspected by a qualified heating and air conditioning contractor or licensed electrician.
  • 50M56-743 Furnace Control Board , Replacement for Goodman Furnace Control Circuit Board 0130F00006, 0130F00006S, PCB00109, PCBBF109, PCBBF122, PCBBF132S, PCBBF122S, PCBBF132,PCBBF162S, PCBBF162.
  • ELECTRICAL RATINGS [@ 77°F (25°C)]: Input Voltage: 25 VAC 50/60 Hz. Max. Input Current @ 25 VAC: 0.45 amp. Relay Load Ratings:Valve Relay: 1.5 amp @ 25 VAC 50/60 Hz 0.6 pf. Ignitor Relay: 6.0 amp @ 120 VAC 50/60 Hz (resistive).Inducer Relay: 2.2 FLA–3.5 LRA @ 120 VAC. Circulator Relay: 14.5 FLA–25.0 LRA @ 120 VAC.
  • Note: to save yourself some hassle, please take a picture of the old one before removing it, make sure getting the wires on the correct terminals.Please feel free to contact us if you have any questions about our products, your satisfaction would be our greatest motivation.
