Proster LCR Meter Multimeter Capacitance Inductance Resistance Tester - color: Red

Proster LCR Meter Multimeter Capacitance Inductance Resistance Tester - color: Red

$54.20 USD
$54.20 USD
Sale Sold out
Taxes included.

About this item

  • Proster LCR meter : inductance, capacitance and resistance measuring meter,it is a Specialdigital instrument which is easy to be operated, the reading accuracy degree is higher with liquid crystal display 3 1/2
  • High Accuracy : (Inductance) Measuring accuracy up to (2%+5); (Capacitance) Measuring accuracy up to (2%+5)Forward voltage drop of diode: Displaty forward voltage drop of diode; Forward voltage of DC: vApprox.1mA; Reverse DC voltage: Approx.2.8V

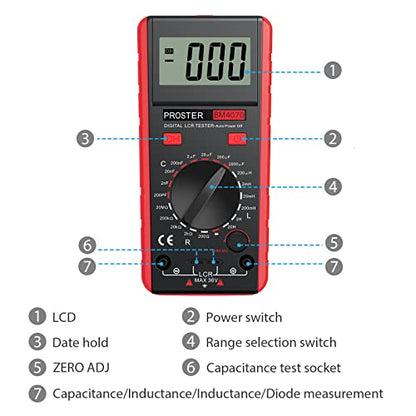

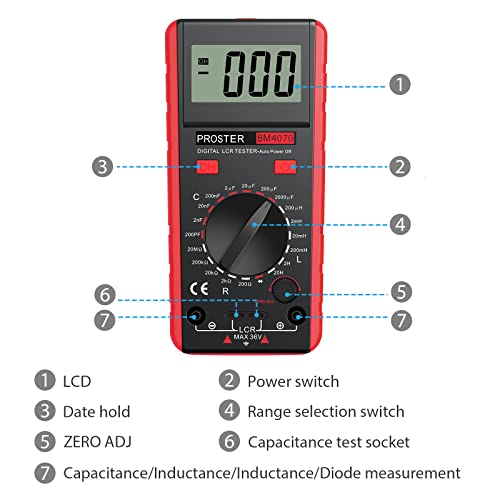

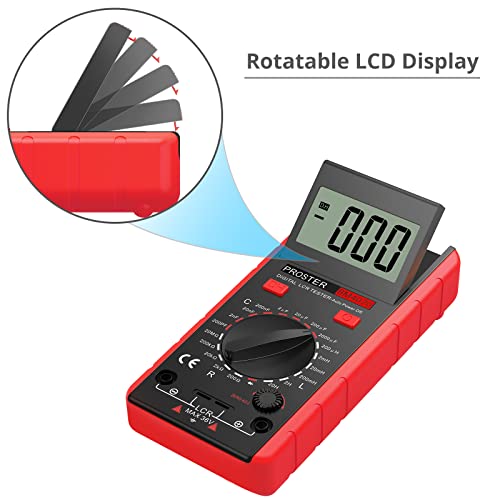

  • Rotatable LCD Display : Multi angle adjustment for easy reading.There is no need to hold tester while measuring, more convenient operation

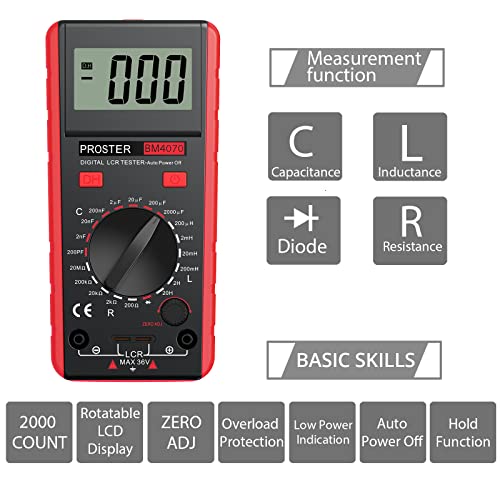

  • Multi-function : Auto power off; Data Hold function; Low Power Indication; ZERO ADJ for Capacitance

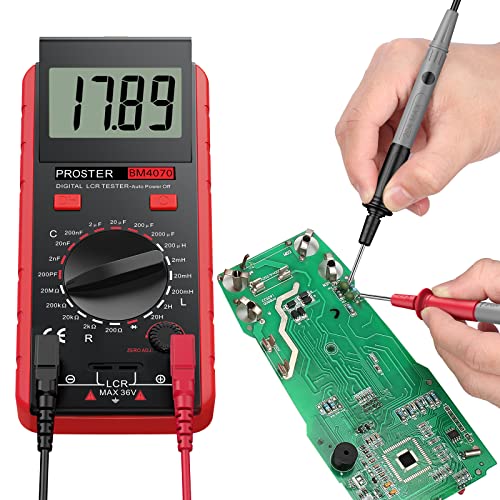

  • Two Test Leads : The black pen is connected to the negative pole and the red test lead is connected to the positive pole

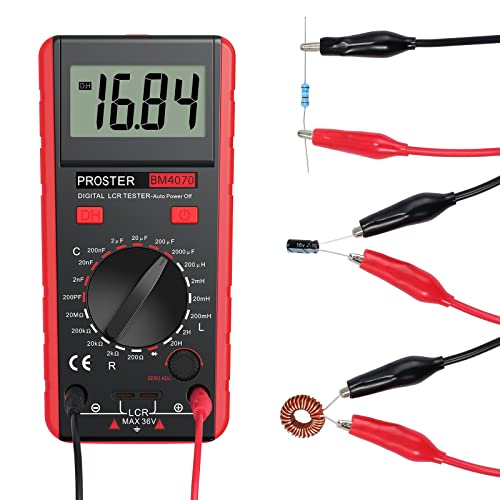

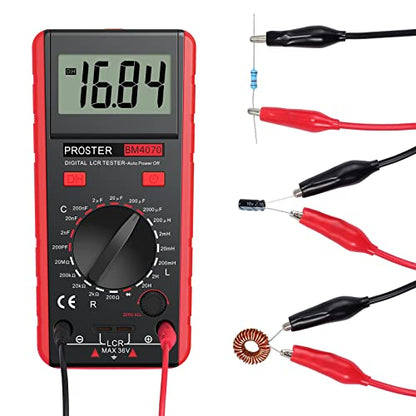

  • 【Why a Dedicated LCR Meter? – Beyond Standard Multimeters】 Standard multimeters struggle with accurate inductance readings and low-value capacitance. The Proster LCR meter is purpose-built for inductance (L), capacitance (C), and resistance (R) measurements. With 3 1/2 digit LCD (1999 max count) and dual-slope A/D conversion, it delivers reliable readings for component testing, sorting, and troubleshooting

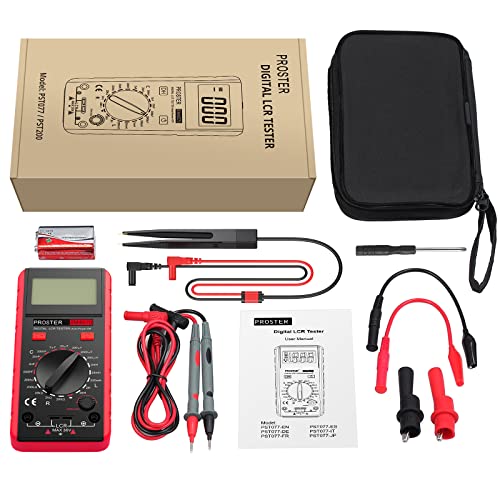

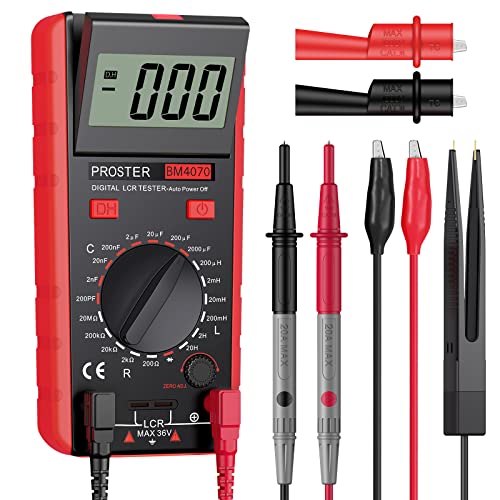

  • 【Complete Kit – Ready to Use Out of the Box】 Includes: LCR meter, test leads, crocodile clips, mini screwdriver, 9V battery, user manual, and a portable storage bag. Features data hold, auto power off, and operates on a standard 9V battery. Sampling rate of 3 times per second provides responsive readings.
  • 【Wide Capacitance Range – 200pF to 2000μF】 Measure everything from small ceramic discs to large electrolytic capacitors. 8 capacitance ranges: 200pF (0.1pF resolution, ±2.5%), 2nF, 20nF, 200nF, 2μF, 20μF, 200μF, and 2000μF (1μF resolution, ±5.0%). Perfect for identifying unmarked caps, matching pairs, or checking for drift and ESR-related degradation
  • 【Inductance Measurement – 200μH to 20H】 Easily test inductors, chokes, transformers, and solenoid coils. 6 inductance ranges: 200μH (0.1μH resolution, ±3.0%), 2mH, 20mH, 200mH, 2H, and 20H (10mH resolution, ±5.0%). Essential for winding your own coils, repairing switch-mode power supplies, or testing crossover network components

Overview

  • Brand: Proster
  • Power Source: Battery Powered
  • Style: LCR eter
  • Color: Red
  • Item Weight: 0.66 kg

Low stock: 10 left
