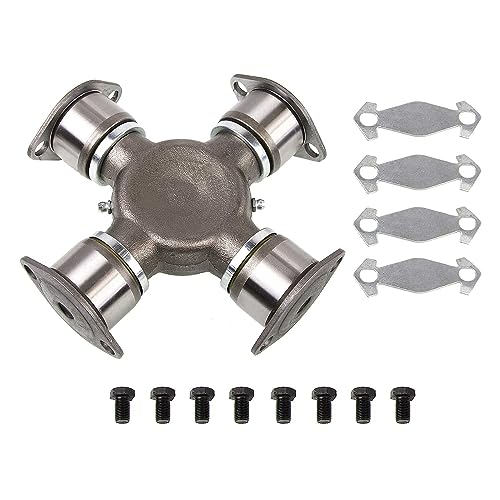

World American DL-UJ-1760-BP-OVER CAP-7.0000 1760 Series Universal Joint Full Round BP Style, 1.938" Bearing Caps, 7.000" Bearing Plate, Replaces for Spicer 15-407X 5407XR, Meritor CP176N - color: 5-407XRM

World American DL-UJ-1760-BP-OVER CAP-7.0000 1760 Series Universal Joint Full Round BP Style, 1.938" Bearing Caps, 7.000" Bearing Plate, Replaces for Spicer 15-407X 5407XR, Meritor CP176N - color: 5-407XRM

$91.76 USD
$91.76 USD
Sale Sold out
Taxes included.

About this item

  • 1760 Series full round BP style universal joint designed for heavy-duty driveline applications, featuring 1.938 inch bearing cap diameter, 7.000 inch bearing plate width, and 6.542 inch overall length for proper yoke fitment and alignment.
  • Heavy-duty cross and trunnion design with 1.363 inch cross diameter and 1.298 inch trunnion diameter, providing high torque capacity, reduced vibration, and extended service life in commercial truck driveline systems.
  • Designed for full round wing bearing bolt applications with 2.432 inch wing center-to-center bolt hole spacing, ensuring secure mounting and proper retention in compatible driveshaft yokes.
  • Direct replacement for multiple OE and aftermarket part numbers including Spicer 15-407X, 5407XR, Meritor CP176N, Freightliner 015407, Mack 2104-5407X, Navistar E5407X, and Volvo 85102669.
  • <h3>Short Summary</h3> <p>The World American DL-UJ-1760-BP-OVER CAP-7.0000 is a heavy-duty 1760 Series full round universal joint designed for commercial truck driveline applications. Featuring BP style bearing plates, 1.938 inch bearing caps, and a 7.000 inch bearing plate width, this greasable U-joint delivers reliable torque transfer, reduced vibration, and extended service life in demanding operating conditions.</p> <h3>Key Features</h3> <ul> <li>1760 Series full round universal joint</li> <li>BP style bearing plate design</li> <li>Bearing cap diameter: 1.938 inches</li> <li>Bearing plate width: 7.000 inches</li> <li>Overall length (Axis 1): 6.542 inches</li> <li>Cross diameter: 1.363 inches</li> <li>Cross trunnion diameter: 1.298 inches</li> <li>Wing bolt hole center to center: 2.432 inches</li> <li>Greasable for extended service life</li> </ul> <h3>Applications & Compatible For</h3> <p>Designed for heavy-duty commercial truck driveshafts using 1760 Series full round BP style universal joints. Commonly used in Freightliner, Mack, Volvo, Navistar, Peterbilt, and Kenworth driveline systems where 1760 Series U-joints are specified.</p> <h3>Replaces For</h3> <ul> <li>Spicer: 15-407X, 5407XR, SD1760, SP5-407X, SST-5407X, HD5407X, PAC407</li> <li>Meritor: CP176N, CP176NS, CP407X, M407X, R407X, ARV-M407X, TDAR407X</li> <li>Freightliner: 015407, SP1760, TDA CP407X, TDA M407X, TDA R407X</li> <li>Mack: 2104-5407, 2104-5407X, 2104.407, OM21045407X, 35-MU-222</li> <li>Volvo: 30090-5002, 85102669, RCUJ407, TDACP407X</li> <li>Navistar: 1676-282-C, 578-379-C, E5407X, FLH5407X, NSS5407X, RDCP407X, ZKC407Q</li> <li>Automann: 752.5407X, NEP6-0407</li> <li>GMB: 114407, 230-0407, G5-407X</li> <li>Neapco: 6-0407, 6-0407Q</li> <li>SKF: UJ376</li> <li>Precision U-Joints: 376</li> <li>World American: 5-407XR, 5-407XB</li> </ul> <h3>Brand Warranty & Why Choose World American</h3> <p>World American manufactures high-quality drivetrain components engineered to meet or exceed OE specifications. This 1760 Series universal joint is built for durability, precise fit, and long-term reliability in commercial truck applications, making it a dependable choice for driveline repair and replacement.</p>

Low stock: 10 left
