YSTOOL Cylinder Leak Down Gasoline Engine Compression Tester Automotive Kit - color: Black

YSTOOL Cylinder Leak Down Gasoline Engine Compression Tester Automotive Kit - color: Black

$51.44 USD
$51.44 USD
Sale Sold out
Taxes included.

About this item

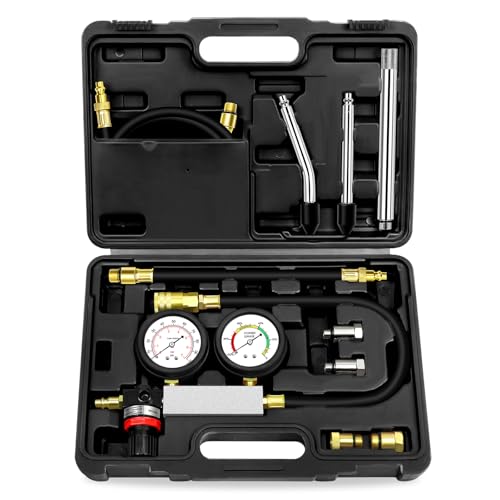

  • The multi-piece cylinder leak down tester kit adds 6 new partners to offer you more options and a better repair experience. On the basis of a common set(1PC double gauge maniflod, 1PC rubber hose and 2PCS metal adapters included), this 3-in-1 cylinder gauge diagnostic tool kit adds 2PCS universal push-on connectors, 2PCS threaded adapters, 1PC M14 extension rod, and 1PC extension hose. It is a must have for any DIYer or professional mechanic's tool collection.

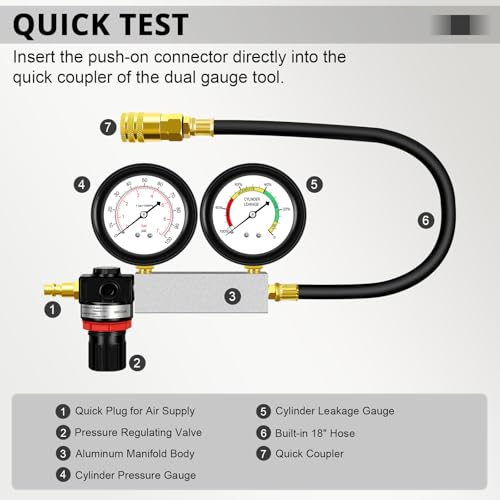

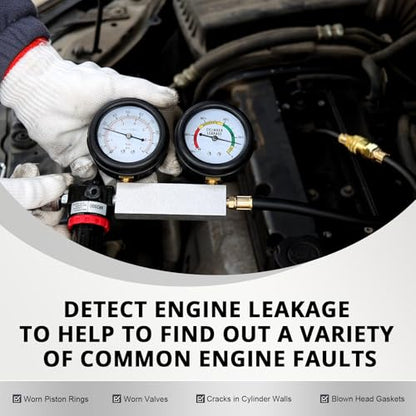

  • Convenient dual gauge design allows the compression gauge tool to test the pressure and leak rate of the cylinder under test at the same time. Ranging from 0-100 psi / 0-7 bar and 0-100%(Accuracy: ±0.5%), easy to read 3-inch gauges would spend less time on readings. Leakdown gauge tool hooks up to air compressor(prepare by yourself) can help to detect common engine faults such as worn piston rings, worn valves, cracks in cylinder walls and blown head gaskets.

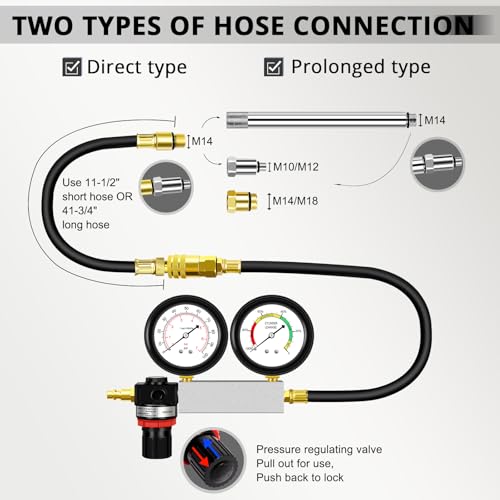

  • Gauge manifold assembly also equipped with 18" rubber hose, AR2000 pressure regulating valve, American type air plug and aluminum manifold body. Valve knob is made of alloy and plastic, used for pressure adjustment of the inputed air from the air compressor. Pull out for use, and push back to lock. This leak down compression tester & cylinder leakage test kit fits for most gasoline engines with spark plugs(within 20mm).

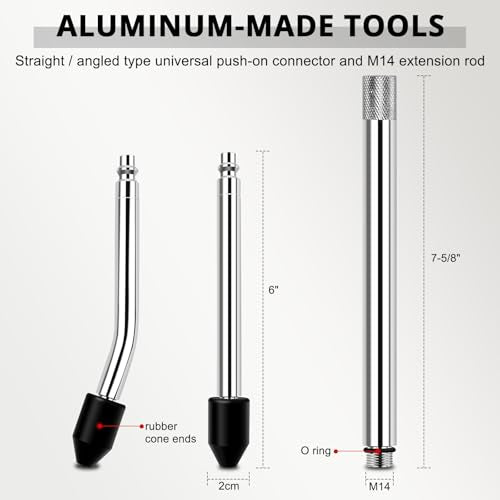

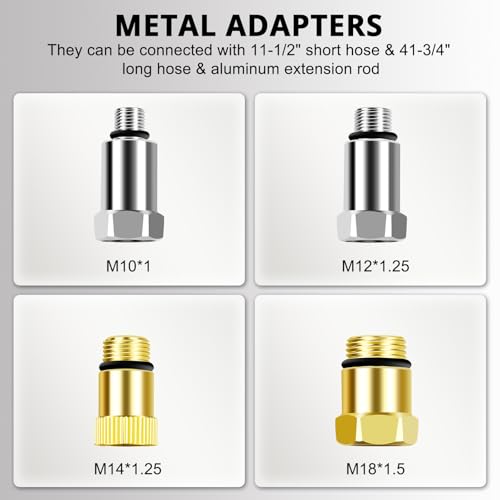

  • Constructed with aluminum and rubber, straight / angled type universal push-on connectors don't need to be threaded into spark plug wells and applicable to almost all petrol engines, and M14 aluminum extension rod can be installed on long / short hose(41-3/4"; 11-1/2") end to increase distance and facilitate operation. Adapter sizes: M14*1.25, M18*1.5, M10*1, M12*1.25. High quality and deep threads allow the fittings to bite better, antislip and durable.

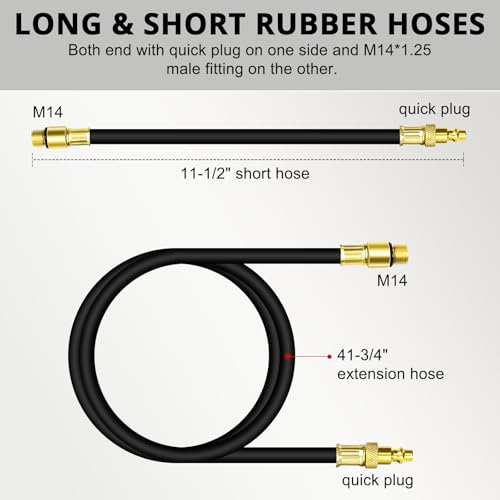

  • Long & short rubber hoses feature 300 psi W.P and brass adapters at both ends(M14 x 1.25; quick plug)- Ideal for connecting the gauge hose assembly to the cylinder with the selectable fittings. Also thanks to process upgrades, this cylinder leak detector can detect even the slightest leaks.

Overview

  • Brand: YSTOOL
  • Material: Aluminum, Brass, Plastic, Rubber

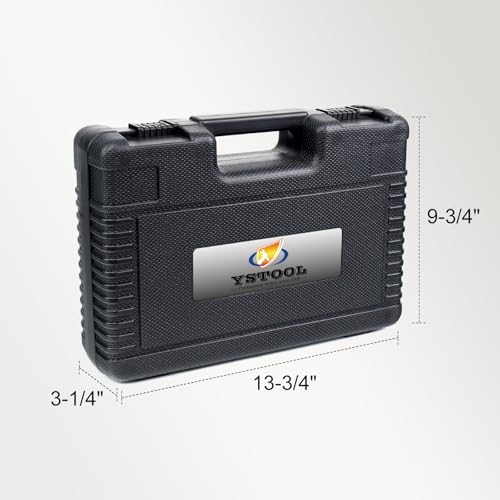

  • Item dimensions L x W x H: 13.75 x 3.25 x 9.75 inches
  • Item Weight: 3.1 pounds
  • Item Highlight: Dual Gauge Leakdown Detector Tool Set for Pressure Check Leakage Rate Test 10 12 14 18MM Universal Adapter with Extension Rod Dual Gauge Leakdown Detector Tool Set for Pressure Check Leakage Rate Test 10 12 14 18MM Universal Adapter with Extension Rod
